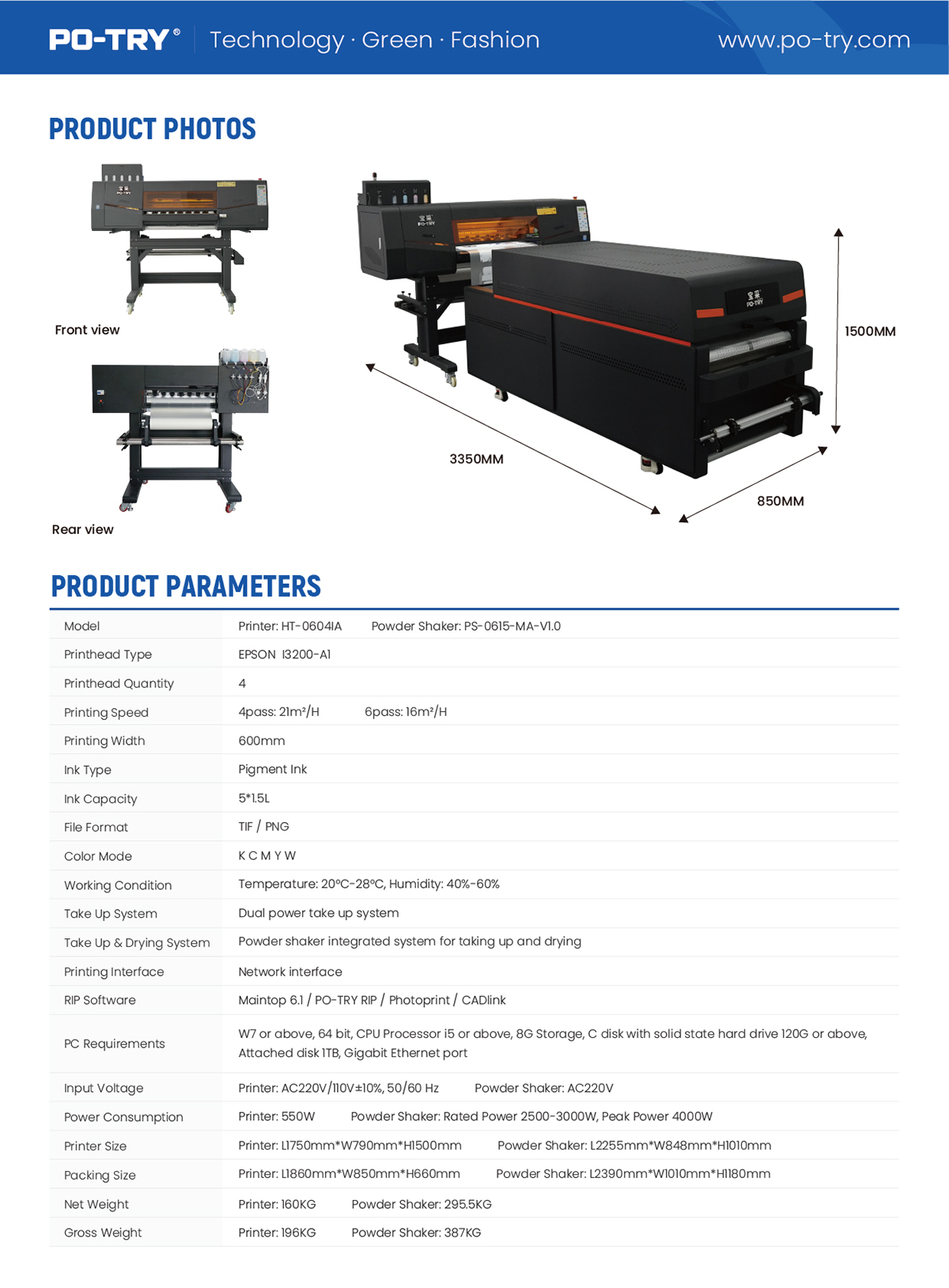

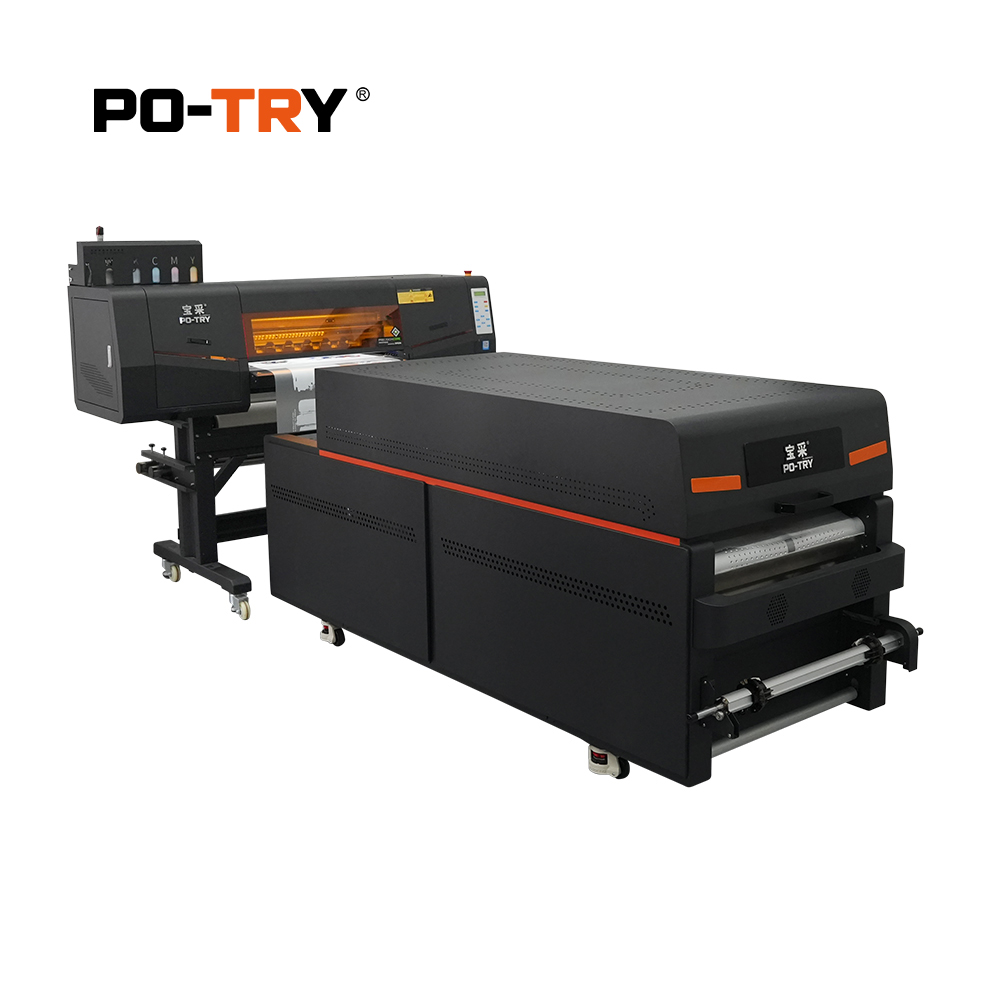

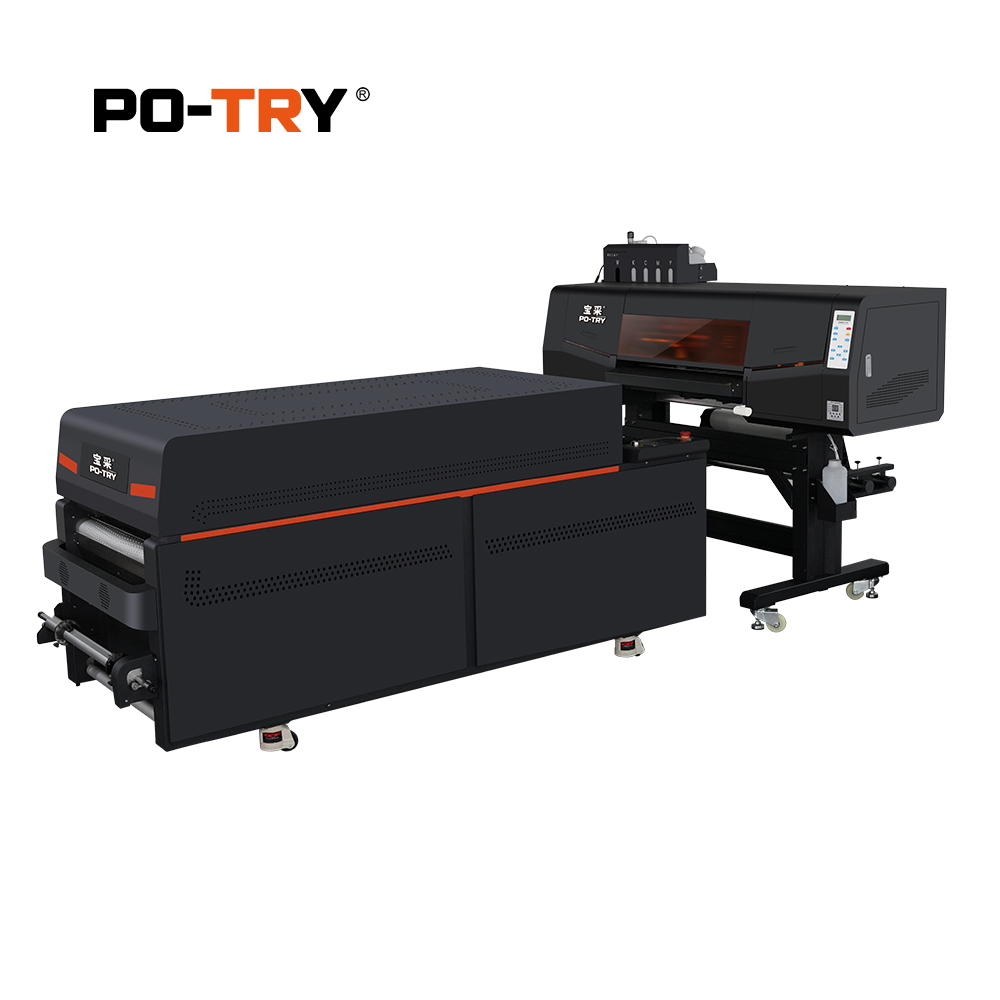

| 4 PRINTHEADS 60CM DTF PRINTER | |
| Model | Printer: HT-0604IA Powder Shaker: PS-0615-MA-V1.0 |
| Printhead Type | EPSON I3200-A1 |
| Printhead Quantity | 4 |
| Printing Speed |
4pass: 21m²/H 6pass: 16m²/H
|
| Printing Width | 600mm |
| InkType | Pigment Ink |
| Ink Capacity | 5*1.5L |
| File Format | TIF / PNG |
| Color Mode | K C M Y W |
| Working Condition | Temperature: 20°C-28°C, Humidity: 40%-60% |
| Take Up System | Constant tension film winding system |
| Printing Interface | Network interface |
| RIP Software |
Maintop 6.1 / PO-TRY RIP / Photoprint / CADlink
|
| PC Requirements |
W7 or above, 64 bit, CPU Processor i5 or above, 8G Storage, C disk with solid state hard drive 120G or above,
Attached disk 1TB, Gigabit Ethernet port
|
| Input Voltage |
Printer: AC220V/110V±10%，50/60 Hz Powder Shaker: AC220V
|
| Power Consumption | Printer: 550W Powder Shaker: Rated Power 2500-3000W, Peak Power 4000W |
| Printer Size | Printer: L1750mm*W790mm*H1500mm Powder Shaker: L2255mm*W848mm*H1010mm |
| Packing Size | Printer: L1860mm*W850mm*H660mm Powder Shaker: L2390mm*W1010mm*H1180mm |
| Net Weight | Printer: 160KG Powder Shaker: 295.5KG |
| Gross Weight | Printer: 196KG Powder Shaker: 387KG |
| 3RD-GENERATION INTELLIGENT POWDER SHAKER | |
| Model | PS-0615-MA-V1.0 |
| Power Consumption |
Rated Power：2500-3000W Peak Power：4000W
|
| Compatible Machine | Configurable with 4/5/6 DTF printers |
| Drying Mode |
Dual-Row Upper, Lower Heating Tubes
|
| Rewinding Mode | Constant tension film winding system |
| Smoke Purification System | Built-In Intelligent Purification System |
| Powder Dispensing Mode | Smart Powder Dispensing with Adjustable Baffle |
| Smart Configuration |
Cover Safety Lock, Powder Level Alarm, Auto Finishing
|
| Operation Mode | Integrated Touch Control Operating System |
| Material Feeding | High-Temperature Resistant Mesh Belt |
| Machine Dimensions | L2255mm*W848mm*H1010mm |
| Package Dimensions | L2390mm*W1010mm*H1180mm |
| Net weight | 295.5KG |
| Gross Weight | 387KG |
