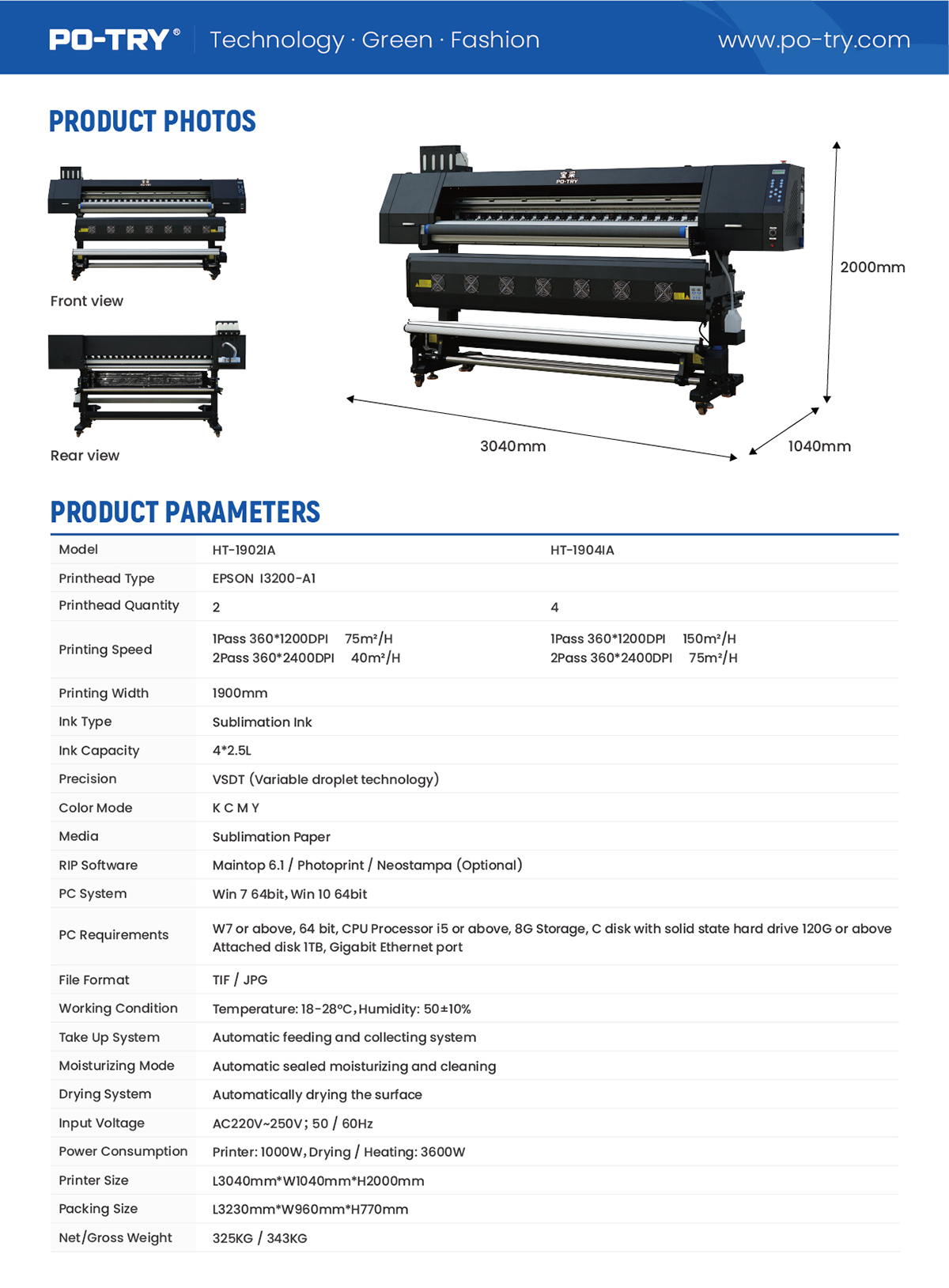

| Model |
HT-B1902IA |
HT-B1904IA |
| Printhead Type |
EPSON I3200-A1 |
| Printhead Quantity |
2 |
4 |
| Printing Speed |
1Pass 360*1200DPI 75m²/H |
1Pass 360*1200DPI 150m²/H |
| 2Pass 360*2400DPI 40m²/H |
2Pass 360*2400DPI 75m²/H |
| Printing Width |
1900mm |
| Ink Type |
Sublimation Ink |
| Ink Capacity |
4*2.5L |
| Precision |
VSDT (Variable droplet technology) |
| Color Mode |
K C M Y |
| Media |
Sublimation Paper |
| RIP Software |
Maintop 6.1 / Photoprint / Neostampa (Optional) |
| PC System |
Win 7 64bit，Win 10 64bit |
| PC Requirements |
W7 or above, 64 bit, CPU Processor i5 or above, 8G Storage, C disk with solid state hard drive 120G or above Attached disk 1TB, Gigabit Ethernet port |
| File Format |
TIF / JPG |
| Working Condition |
Temperature: 18-28°C，Humidity: 50±10% |
| Take Up System |
Automatic feeding and collecting system |
| Moisturizing Mode |
Automatic sealed moisturizing and cleaning |
| Drying System |
Automatically drying the surface |
| Input Voltage |
AC220V~250V； 50 / 60Hz |
| Power Consumption |
Printer: 1000W，Drying / Heating: 3600W |
| Printer Size |
L3040mm*W1040mm*H2000mm |
| Packing Size |
L3230mm*W960mm*H770mm |
| Net/Gross Weight |
325KG / 343KG |

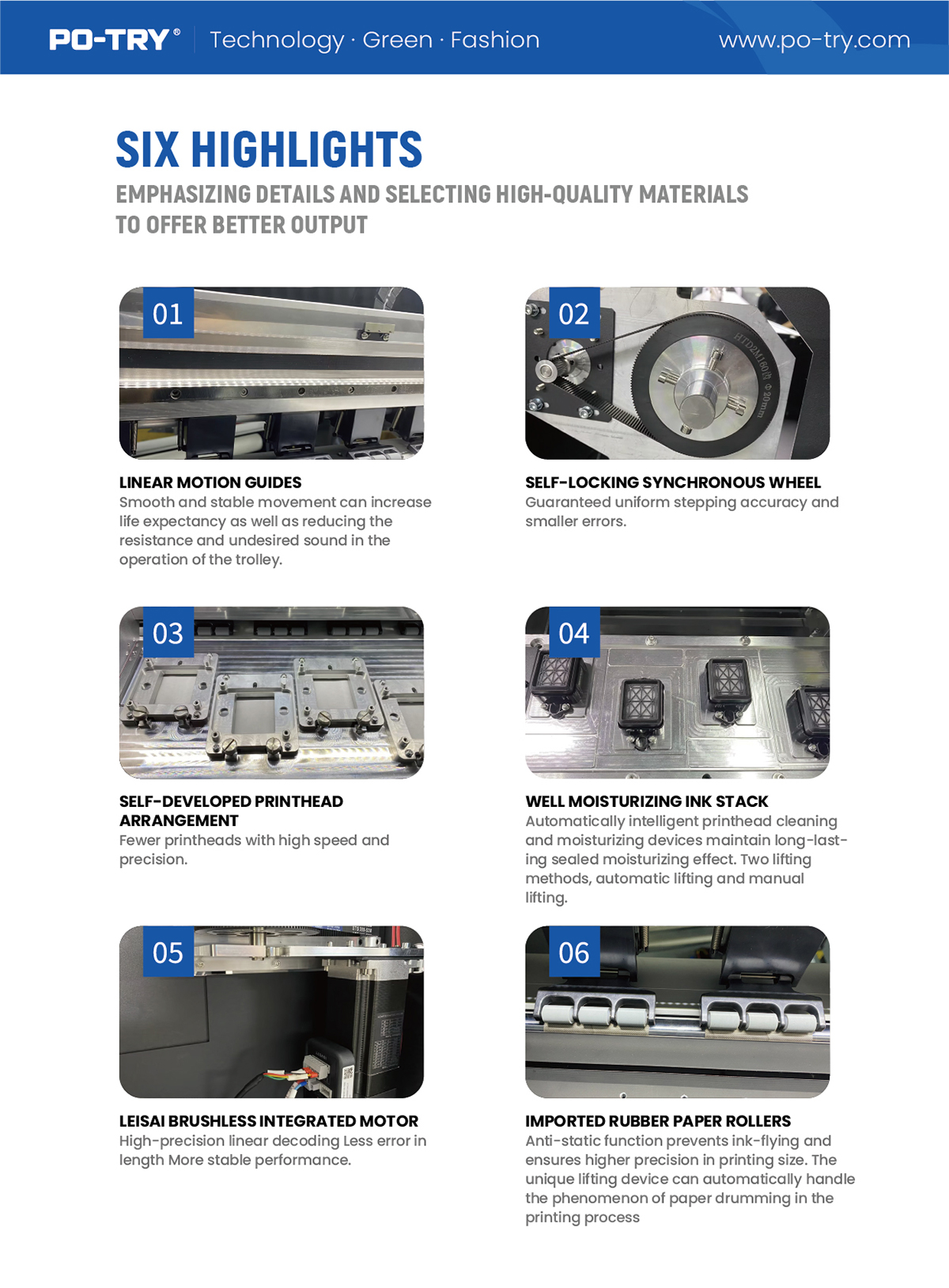

Product Features
1. Japan THK Linear Motion Guides：Smooth and stable movement can increase life expectancy as well as reducing the resistance and undesired sound in the operation of the trolley
2. Self-locking Synchronous Wheel：Guaranteed uniform stepping accuracy and smaller errors.
3. Self-developed Printhead Arrangement：Fewer printheads with high speed and precision
4. Well Moisturizing Ink Stack：Automatically intelligent printhead cleaning and moisturizing devices maintain long-last-ing sealed moisturizing effect. Two lifting methods, automatic lifting and manual lifting.
5. Leisai Brushless Integrated Motor：High-precision linear decoding Less error in length More stable performance
6. Imported Rubber Paper Rollers：Anti-static function prevents ink-flying and ensures higher precision in printing size. The unique lifting device can automatically handle the phenomenon of paper drumming in the printing process
